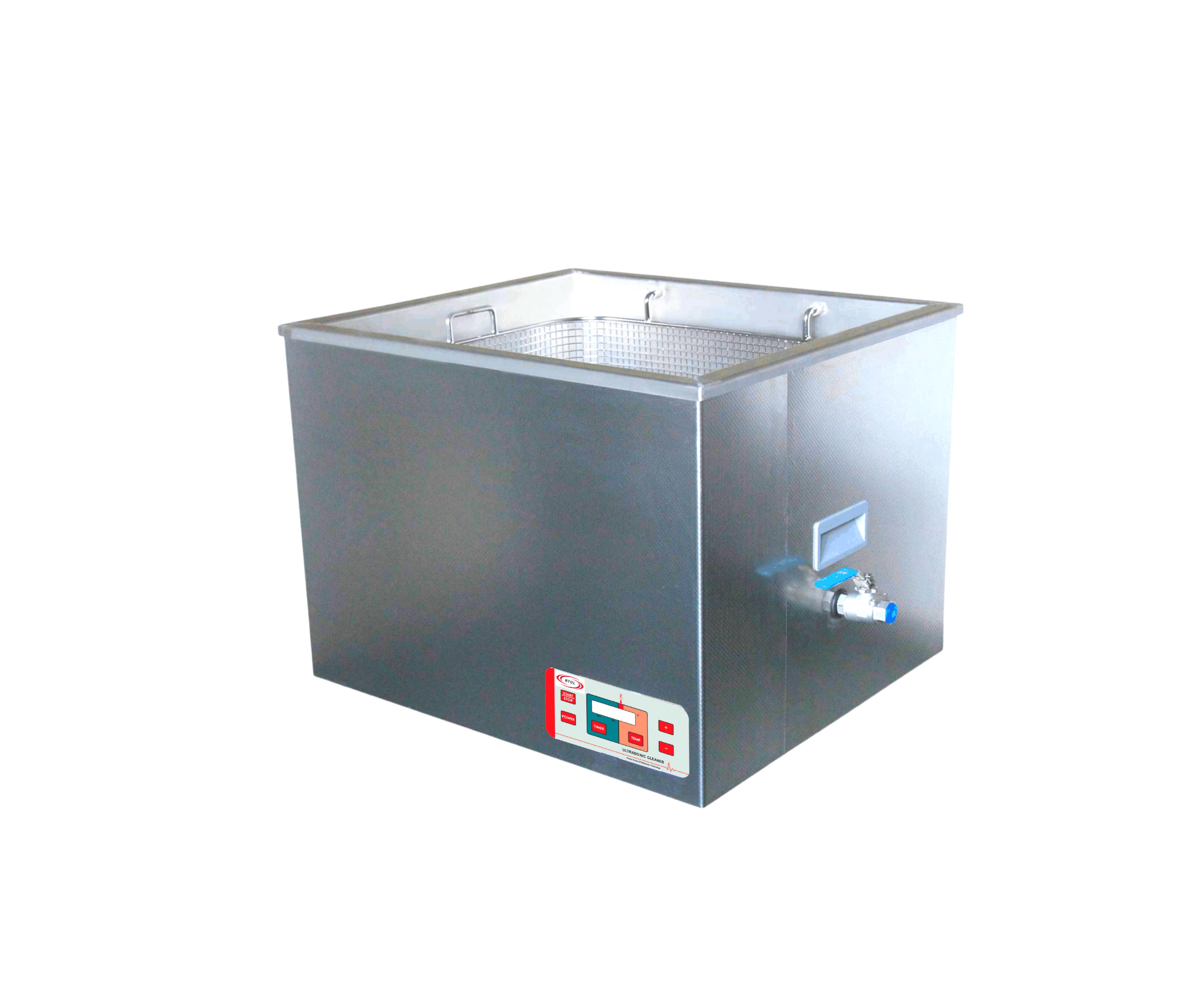

Ultrasonic Table Top Cleaners

Ultrasonics, i.e. high frequency vibrations, generate agitation in liquid resulting into ‘Cavitation’, which is rapid formation and collapse of minute bubbles in liquid. Implosion of bubbles with high pressure on exposed surface of component dislodges and removes contamination like dirt, dust, oil, grease, chips, wax, lapping paste, carbon etc.

Very high degree of cleaning can be achieved in multi-chamber/multi-operation cleaning system with proper orientation of components, filtration of cleaning liquid, rinsing of components and drying with air and/or vacuum.



TYPE   TPC-15H  TPC-25H  TPC-40H  TPC-120H  TPC-280H
Mains Voltage  V 230 230 230 230 230
Current Consumption incl. heater Amax 0.8 1.0 1.2 5.0 8.0
Ultrasonic output eff/peak Wmax 75/150 75/150 150/300 300/600 600/1200
Operating Frequency Khz 30/40 30/40 30/40 30/40 30/40
Digital adjustable thermostats  20°-80°C Yes Yes Yes Yes Yes
Digital timer 1s-99min Yes Yes Yes Yes Yes
Heating power 120 150 150 800 1200
Tank capacity 1.5 2.5 4 12 28
Int. Dimension LxWxD MM 150*135*100  235*135*100 235*135*100 300*235*200 505*300*200
Ext. Dimension LxWxD MM 180*165*220 265*165*220 265*165*262 330*270*325 535*330*370
Outlet valve NO  NO  NO  NO  NO
Weight Kg 3.0 3.5 4.5 9.0 18.0
Item code 900 975 010 900 976 010 900 978 010 900 979 010 900 981 010

  • Latest Technology
  • IGBT Based Machine
  • Very Simple Operation
  • Generously Dimensioned Heating System For Rapid Heating Of The Liquid, Thermostatically Continuously Variable Between 20 And 80°C
  • Complete Unit Made Of Stainless Steel, Easy Maintenance And Drip-Proof
  • Timer Operation 1-99 Min And Continuous Operation
  • Remaining Cleaning Time Is Optically Displayed
  • Ultrasonic Frequency 30 KHz
  • Tank Contents 1.5 – 28 Ltr
  • Digital Control Of Time And Temperature
  • Longer Tank Life
  • Low Noise Level
  • Suitable For Continuous Operation
  • Rugged And Easy To Clean Stainless Steel Housing
  • Fully Transistorized Generator
  • Automatic Frequency Tuning For Maximum Output
  • Maintenance-Free

  • Filters
  • Probes
  • Syringes
  • Antiques
  • Watches
  • White goods
  • Castings
  • Textiles
  • Templates

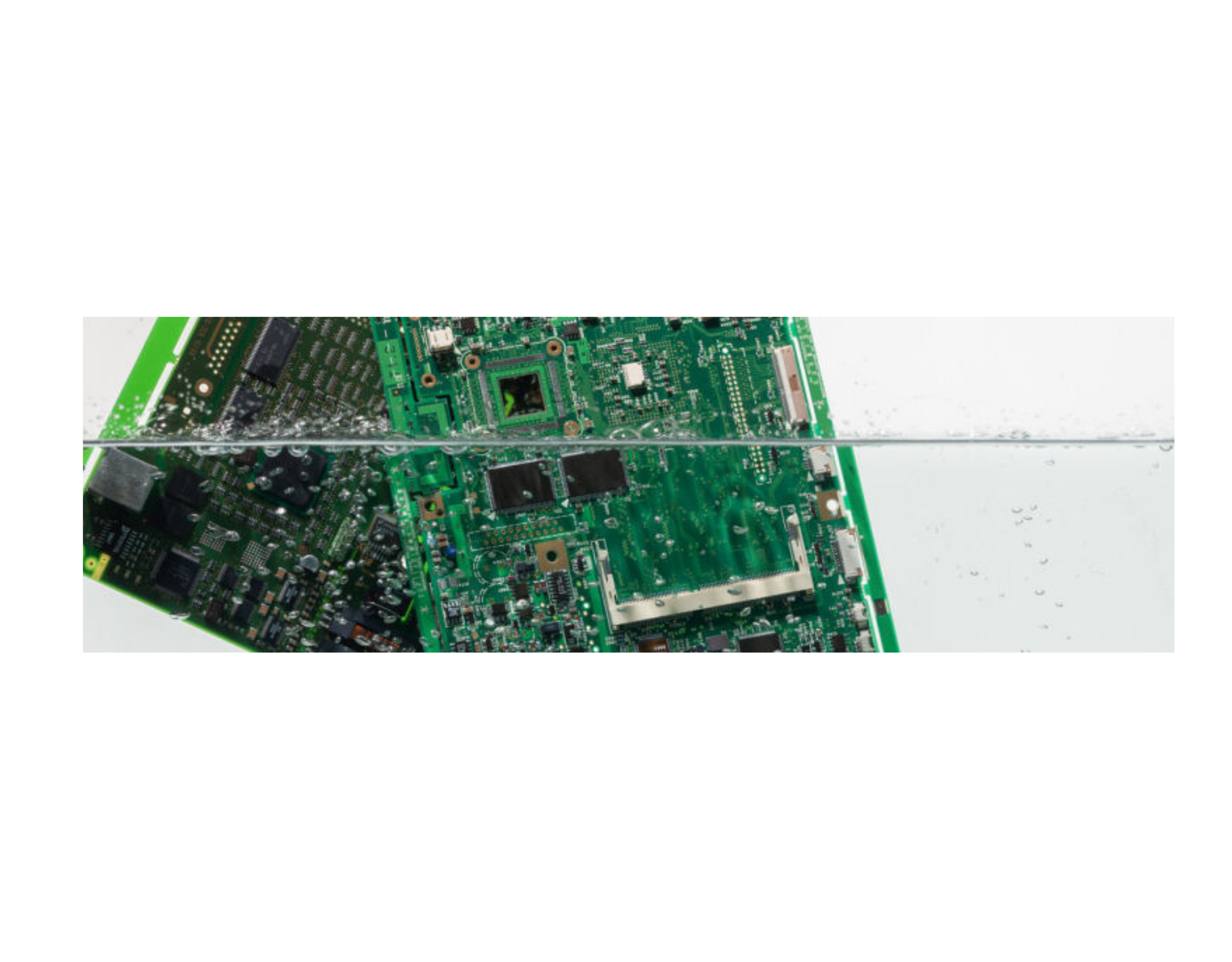

  • Electronics
  • Hearing Aids
  • Packaging
  • Pacemakers
  • Micropipettes
  • Microturbines
  • Milling Cutters
  • Drills Armatures
  • Camera Closures
  • Balloon or Flasks
  • Integrated Circuits
  • Test Glasses or Tubes
  • Micro Pneumatic Parts
  • Printed Circuits Relays
  • Dental Instrumentations
  • Lens and Glass Frames
  • Polished Precious Metals
  • Radioactive contaminated parts
  • Electronic Parts Semiconductors
  • Gear (Ball-Bearing)
  • Pens
  • Blood Pumps
  • Timers
  • Crystals
  • Valves
  • Ocular Gravures
  • Spray Jets
  • Electrodes
  • Drawing dies
  • Heavy Engineering Parts
  • Automotive Parts and many more
