SERVO PRESS

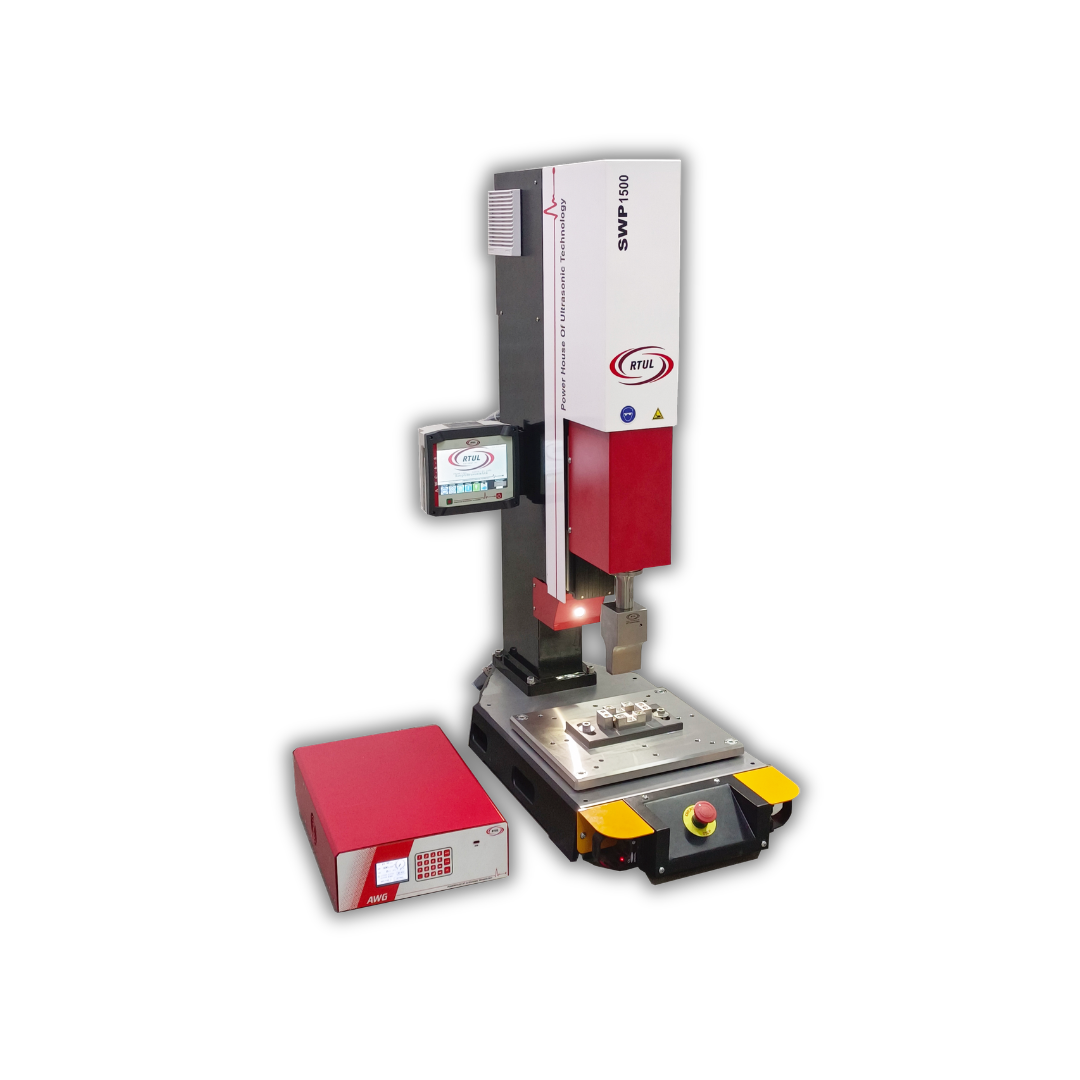

Achieve exceptional welding precision with the RTUL Servo Press SWP 1500. Designed for demanding plastic welding applications, it combines advanced servo-driven motion control with ultrasonic technology to deliver accurate, repeatable, and digitally monitored welds. Ideal for manufacturers requiring superior weld quality, process consistency, and complete production traceability.
- Frequency: 20 kHz
- Power Output: Up to 2 kW
- Control System: AWC-6 Smart Controller with 7-inch Touch Displa
- Motor System: High-Precision Servo Drive
- Trigger Modes: 4 Trigger Modes (Time, Distance, Energy & More)
- Weld Modes: 5 Configurable Weld Modes
- Data Logging: Stores Up to 99,999 Weld Records with USB Backup
- Graph Display: Displays Data for the Last 1,000 Welds
- Connectivity: USB, I/O Monitoring & Real-Time Clock (RTC)
- Weight: Approximately 80 kg
- Dimensions: Approximately 800 × 400 × 1175 mm (L × W × H)
- 7" Colour touch screen.
- Provides 4 different Trigger modes - Time, Force, Distance and Touch.
- Provides 5 different weld modes - Time, energy, Weld Distance, Absolute Distance and Maximum Power.
- Energy, Distance Measurement and control.
- Variable pressure profile for more accurate Weld Results.
- Amplitude Profile to weld Few Semi- Crystalline Materials.
- Automatic Saving of last 99999 welding Results.
- User can store 50 different Job Settings. (Data set management)
- Selectable calibration pulse for Automatic Sonotode Frequency Tuning.
- 6 Types of different quality windows
- RS-232/USB Interface for receiving Welding summary on PC.
- In-built Rotary Table Interface with Two Sensor Support.
- In-built Pick and Place System Interface.
- Provides 4 User Programable Inputs and Outputs.
- Modular design of system allows easy capacity up-gradation.
- Precise time setting with least count of 0.001 second, thus avoiding over welding, deformation, reduction of production rate and excess consumption of power.
- Additional ultrasonic vibration at the end of cycle resulting into removal of particles from horn.
- Self diagnosis-Microprocessor allows operator to rectify the system.
- Automatic tuning of horn & horn life indication, easy capacity upgradation, amplitude setting without changing the booster.
- Energy mode option in addition to time mode allowing precise setting of energy as per job requirement.
- Automobile
- Clock / Watches
- Cosmetics
- Domestic Appliances
- Electronics Equipments
- Energy Meters
- Furniture
- Lighting Equipments
- Mechanical Enggineering
- Medical Equipments
- Office Equipment
- Optics
- Photography
- Precision mechanics
- Pump
- Radio-Tv
- Sound-Radio-TV
- Sports goods
- Surgical
- Telecommunications
- Textiles
- Teaching aids
- Toys
- Video
- Zip fasteners & Many more
